1 kg of coal will typically require 7-8 kg of air depending upon the carbon, hydrogen, nitrogen, oxygen and sulphur content for complete combustion. This air is also known as theoretical or stoichiometric air.
If for any reason the air supplied is inadequate, the combustion will be incomplete. The result is poor generation of heat with some portions of carbon remaining unburnt (black smoke) and forming carbon monoxide instead of carbon dioxides.
As in the case of oil, coal cannot be burnt with stoichiometric quantity of air. Complete combustion is not achieved unless an excess of air is supplied.
The excess air required for coal combustion depends on the type of coal firing equipment. Hand fired boilers use large lumps of coal and hence need very high excess air. Stoker fired boilers as shown in the Figure 1.5 use sized coal and hence require less excess air. Also in these systems primary air is supplied below the grate and secondary air is supplied over the grate to ensure complete combustion.
Fluidised bed combustion in which turbulence is created leads to intimate mixing of air and fuel resulting in further reduction of excess air. The pulverized fuel firing in which powdered coal is fired has the minimum excess air due to high surface area of coal ensuring complete combustion.
Clinker is a mass of rough, hard, slag-like material formed during combustion of coal due to low fusion temperature of ash present in coal. Presence of silica, calcium oxide, magnesium oxides etc. in ash lead to a low fusion temperature. Typically Indian coals contain ash fusion temperature as low as 1100oC. Once clinker is formed, it has a tendency to grow. Clinker will stick to a hot surface rather than a cold one and to a rough surface rather than a smooth one.
The stoichiometric ratio for natural gas (and most gaseous fuels) is normally indicated by volume. The air to natural gas (stoichiometric) ratio by volume for complete combustion vary between 9.5:1 to 10:1
Natural gas is essentially pure methane, CH4. Its combustion can be represented as follows:
So for every 16 kgs of methane that are consumed, 44 kgs of carbon dioxide are produced. (Remember that the atomic weights of carbon, oxygen and hydrogen are 12, 16 and 1, respectively.)

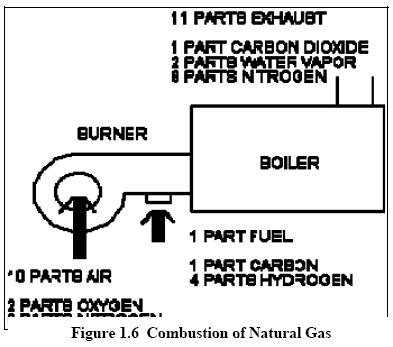

Methane burns, when mixed with the proper amount of air and heated to the combustion temperature. Figure 1.6 shows the process with the amount of air and fuel required for perfect combustion.
The important thing in all gas-burning devices is a correct air-and-gas mixture at the burner tip. Low-pressure burners (figure 1.7), using gas at a pressure less than 0.15 kg/cm2 (2 psi), are usually of the multi-jet type, in which gas from a manifold is supplied to a number of small single jets, or circular rows of small jets, centered in or discharging around the inner circumference of circular air openings in a block of some heat-resisting material. The whole is encased in a rectangular cast-iron box, built into the boiler setting and having louver doors front to regulate the air supply. Draft may be natural, induced, or forced.
In a high-pressure gas mixer (figure 1.8), the energy of the gas jet draws air into the mixing chamber and delivers a correctly proportioned mixture to the burner. When the regulating valve is opened, gas flows through a small nozzle into a venturi tube (a tube with a contracted section). Entrainment of air with high-velocity gas in the narrow venturi section draws air in through large openings in the end. The gas-air mixture is piped to a burner. The gas-burner tip may be in a variety of forms. In a sealed-in tip type, the proper gas-air mixture is piped to the burner, and no additional air is drawn in around the burner tip. Size of the air openings in the venturi tube end is increased or decreased by turning a revolving shutter, which can be locked in any desired position. Excess air levels in natural gas burner is in the order of 5%.
